For wheels for passenger cars, vans, off-road vehicles and SUVs up to 360 mm wide with the diameter of up to 850 mm with any type of rims and tyres, with water heating system, pneumatic wheel stabilisation system.

General features:

• computer control

• software in 6 languages

• user-friendly display

• servomotor with an arm keeping narrower wheels in vertical position

• sedimentation tank separated from washing chamber

• double acoustic insulation system (rubber lining, foam)

• anti-vibration rubber feet

• shut-off ball valve

• attractive graphic design

• version without heating – model 4x4P

Heating system:

• heater power - 4 kW 400 V

• water heating time to 50°C: 60 - 120 min

• overheating protection

Standard equipment:

• WULKAN MIX granulate 25 kg

• granulate basket

• WULKAN TURBO washing concentrate 30 l

• plastic protective cover

• rubber anti slip mat 2 pcs

• air blow gun

Optional accessories:

• pneumatic rotary lift WL360

Technical data:

• Wheel diameter range - 560 - 850 mm

• Wheel width range - 135 - 360 mm

• Maximum weight of wheel - 60 kg

• Washing times, factory set (adjustable, 3 programmes)* - 30, 60, 90 s

• Drying time, factory set (adjustable, 1 programme)** - 15 s

• Water heating time to 50ºC - 60 - 120 min

• Heater power - 4 kW 400 V

• Pump drive 3-phase 400 V, 50 Hz, 5.5 kW - 2900 rpm/min

• Pump efficiency - 600 L/min

• Wheel drive 3-phase 400 V, 50 Hz, 0.37 kW - 930 rpm/min

• Motors and drive power - 6 kW

• Water pressure - 4 bar

• Quantity of water - 300 L

• Quantity of WULKAN MIX granulate - 20 kg

• Quantity of WULKAN TURBO washing concentrate - 1 L

• Compressed air working pressure - 8 - 12 bar

• Average sound level - 79,1 dB(A)

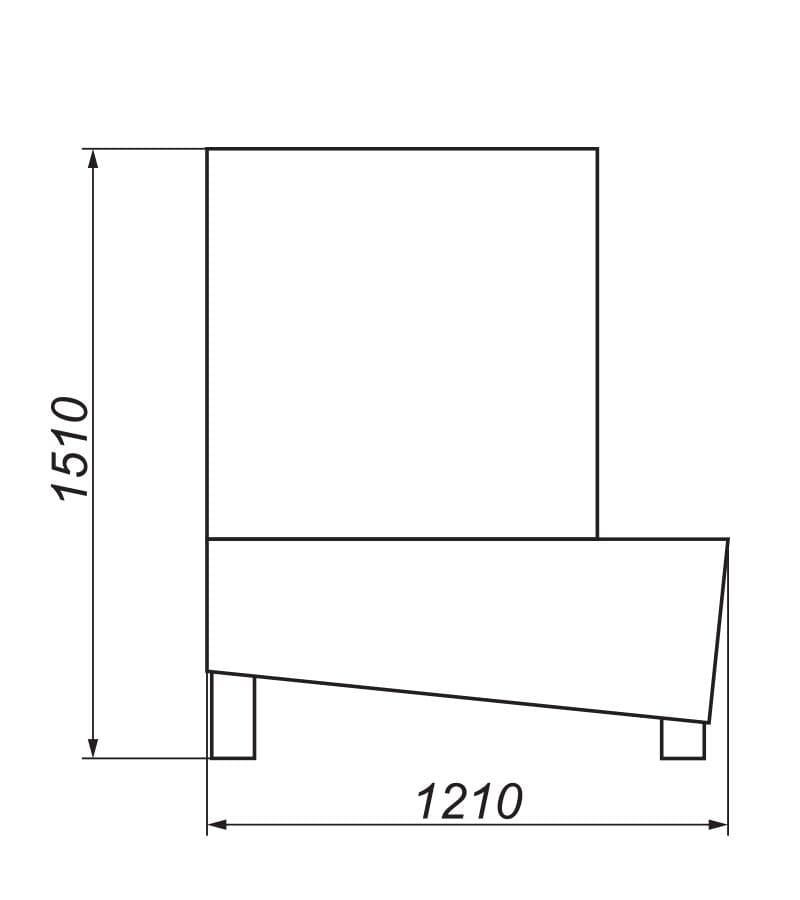

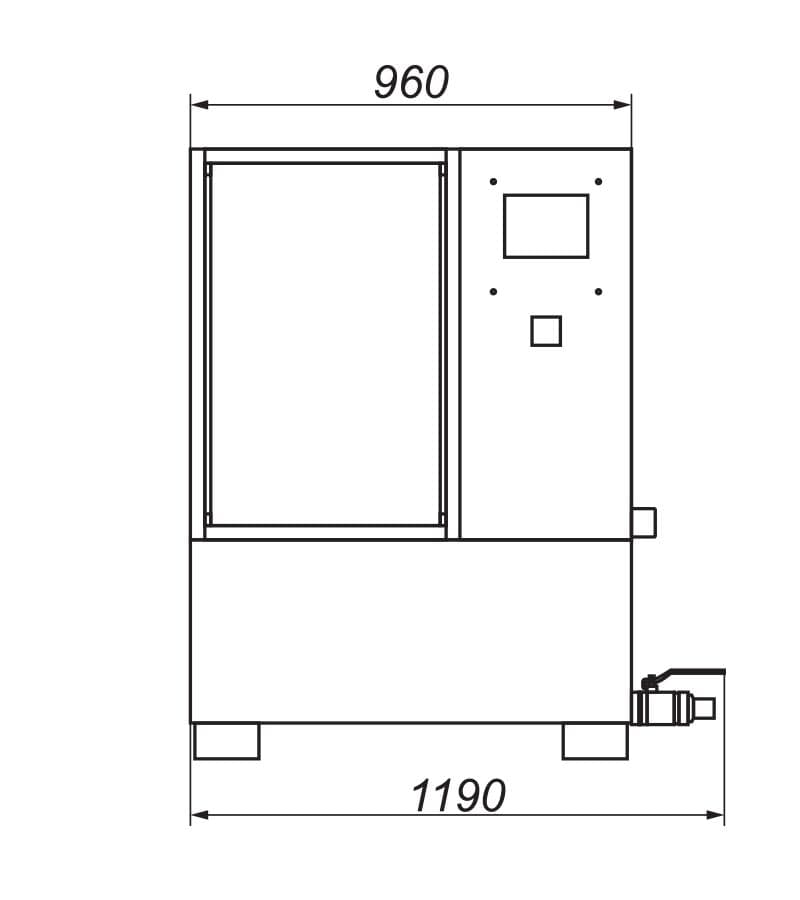

• Dimensions (width x depth x height) - 1190 x 1210 x 1510 mm

• Net weight - 330 kg

• Maximum limiting number of washing process starts (service lock) - 500 starts
