For wheels for passenger cars and vans with any type of rims and tyres

General features:

• sedimentation tank separated from washing chamber

• triple acoustic insulation system (rubber lining, perforated PVC shield, foam)

• anti-vibration rubber feet

• shut-off ball valve

• possible adjusting of washing and drying times in the production stage

• counter of starts display option available

• attractive graphic design on request

• externally mounted water heating system available for retrofitting in older versions of machine

Standard equipment:

• WULKAN MIX granulate 25 kg

• granulate basket

• WULKAN TURBO washing concentrate 30 l

• plastic protective cover

Technical data:

• Wheel diameter range - 560 - 800 mm

• Wheel width range - 135 - 305 mm

• Maximum weight of wheel - 60 kg

• Washing times, factory set (adjustable, 3 programmes)* - 30, 60, 90 s

• Drying time, factory set (adjustable, 1 programme)** - 15 s

• Pump drive 3-phase 400 V, 50 Hz, 5.5 kW - 2900 rpm/min

• Pump efficiency - 600 L/min

• Wheel drive 3-phase 400 V, 50 Hz, 0.37 kW - 930 rpm/min

• Motors and drive power - 6 kW

• Water pressure - 4 bar

• Quantity of water - 300 L

• Quantity of WULKAN MIX granulate - 20 kg

• Quantity of WULKAN TURBO washing concentrate - 1 L

• Compressed air working pressure - 8 - 12 bar

• Average sound level - 78,4 dB(A)

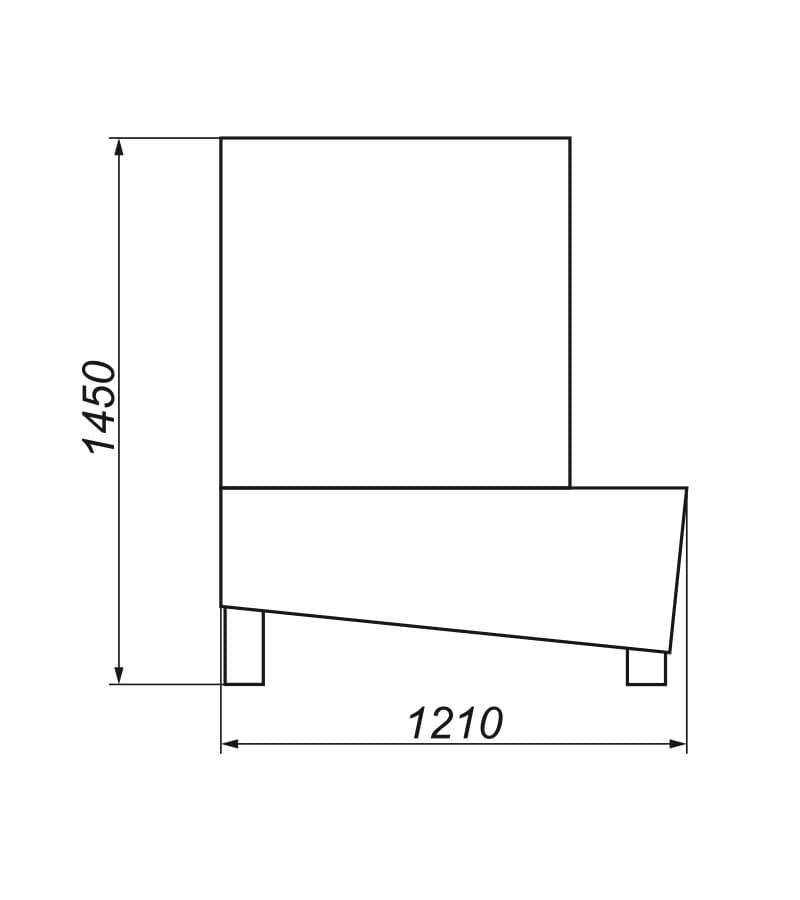

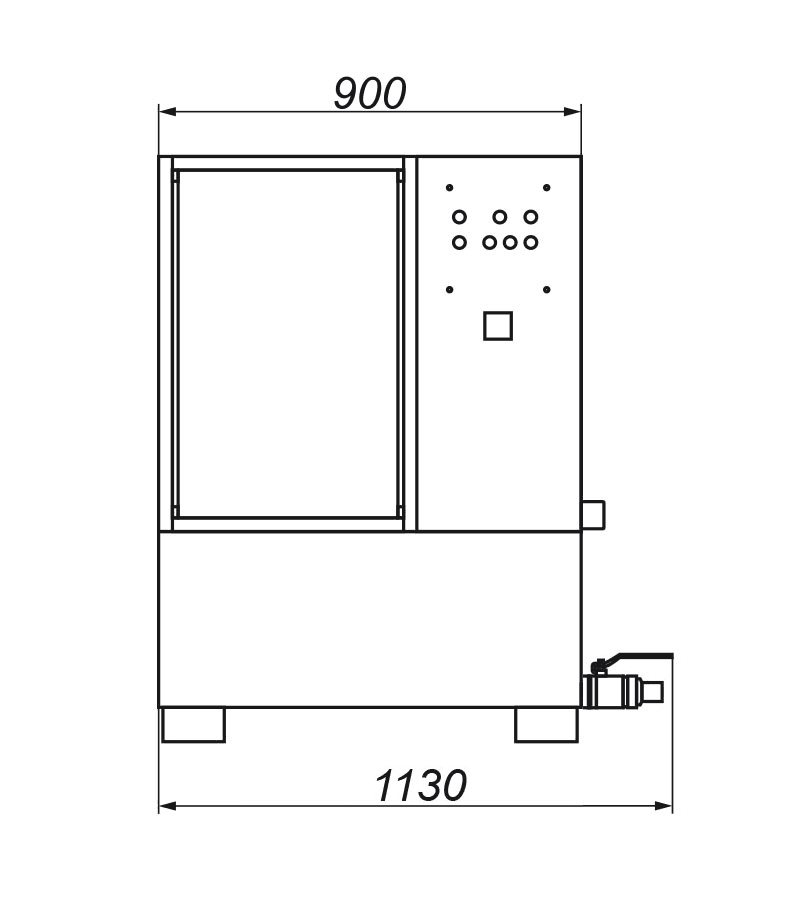

• Dimensions (width x depth x height) - 1130 x 1210 x 1450 mm

• Net weight - 310 kg

• Maximum limiting number of washing process starts (service lock) - 500 starts
