For wheels for passenger cars and vans with any type of rims and tyres

General features:

• triple acoustic insulation system (rubber lining, perforated PVC shield, foam)

• anti-vibration rubber feet

• possible adjusting of washing and drying times in the production stage

• counter of starts display option available

• attractive graphic design on request

Standard equipment:

• WULKAN MIX granulate 25 kg

• granulate basket

• WULKAN TURBO washing concentrate 20 L

• plastic protective cover

Technical data:

• Wheel diameter range - 560 - 800 mm

• Wheel width range - 135 - 360 mm

• Maximum weight of wheel - 60 kg

• Washing times, factory set (adjustable, 3 programmes)* - 30, 60, 90 s

• Drying time, factory set (adjustable, 1 programme)** - 15 s

• Pump drive 3-phase 400 V, 50 Hz, 5.5 kW - 2900 rpm/min

• Pump efficiency - 600 L/min

• Wheel drive 3-phase 400 V, 50 Hz, 0.37 kW - 930 rpm/min

• Motors and drive power - 6 kW

• Water pressure - 4 bar

• Quantity of water - 150 L

• Quantity of WULKAN MIX granulate - 17,5 kg

• Quantity of WULKAN TURBO washing concentrate - 0,5 L

• Compressed air working pressure - 8 - 12 bar

• Average sound level - 78 dB(A)

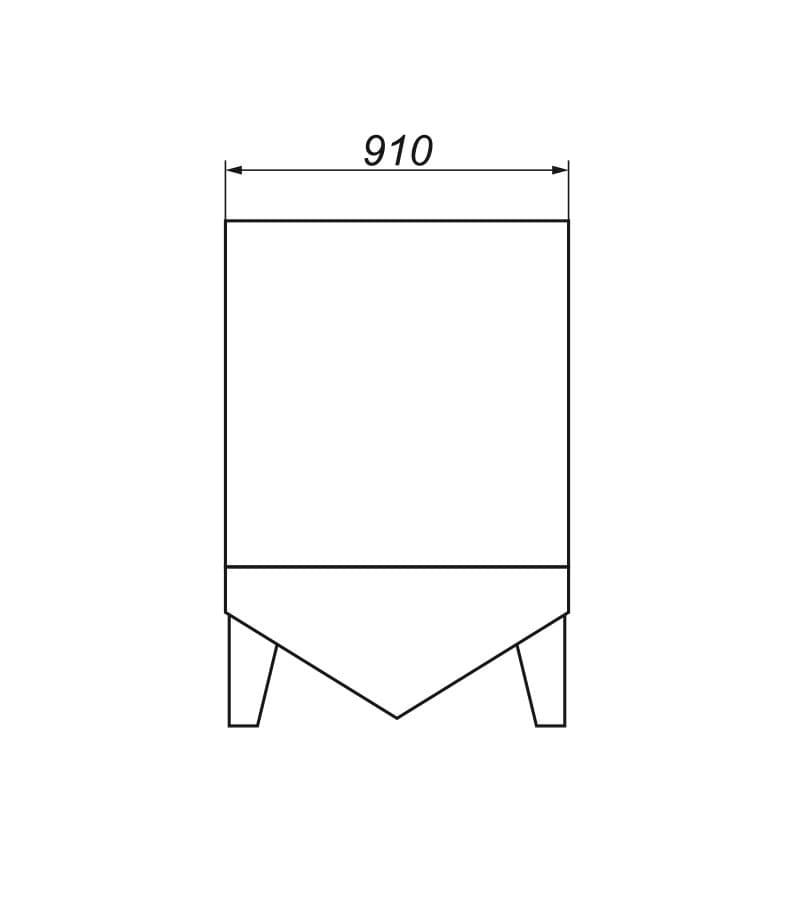

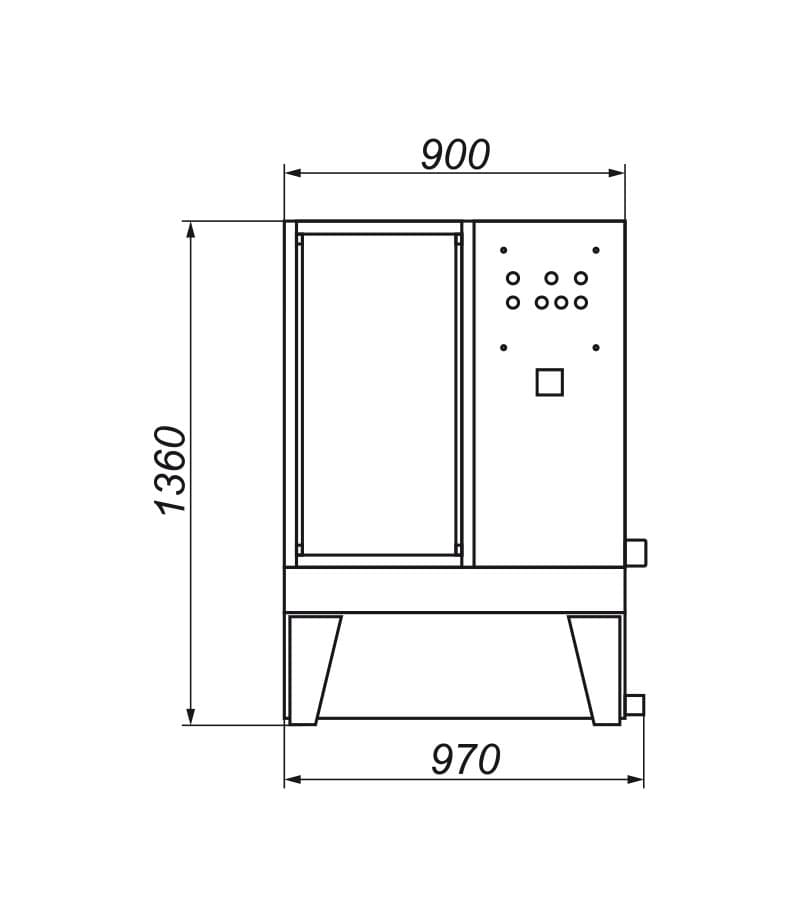

• Dimensions (width x depth x height) - 970 x 910 x 1360 mm

• Net weight - 270 kg

• Maximum limiting number of washing process starts (service lock) - 200 starts
